In building heavy-duty machines, such as a 150 kg remote-controlled mobile platform, the power supply is only half the battle. When dealing with 24V DC motors coupled with powerful reduction gears, we need motor drivers capable of taming high starting currents and providing smooth control alongside digital radio transmitters (like the FlySky i6X).

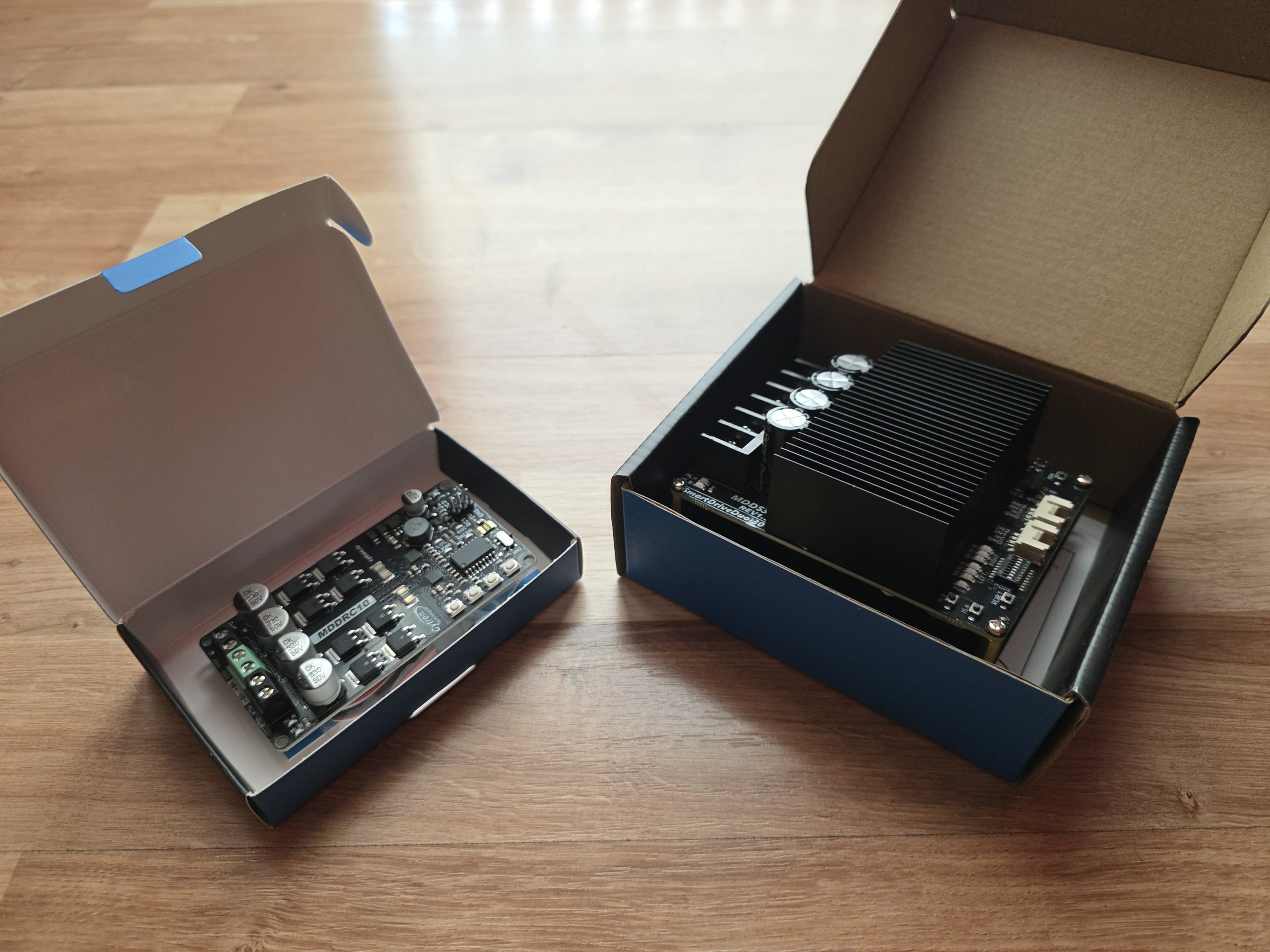

Thanks to our partnership with Cytron, the driving heart of my new project features the SmartDriveDuo-30 (MDDS30) and MDDRC10 modules. Let’s dive into their in-depth technical specifications and capabilities that make them the perfect choice for advanced builds.

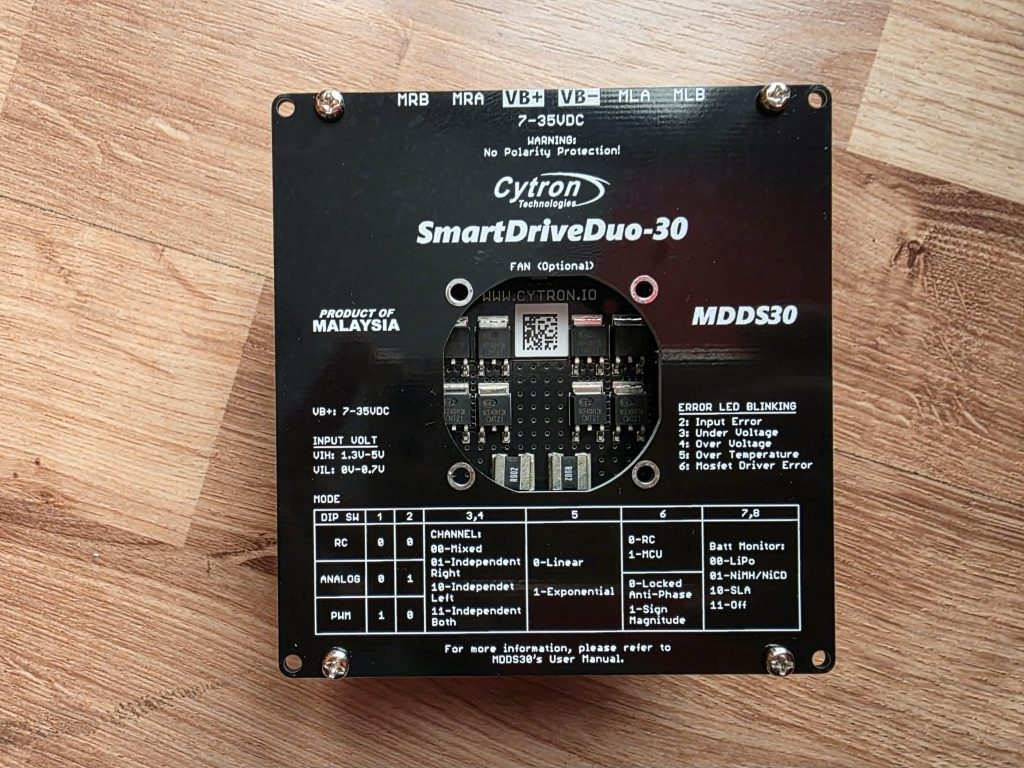

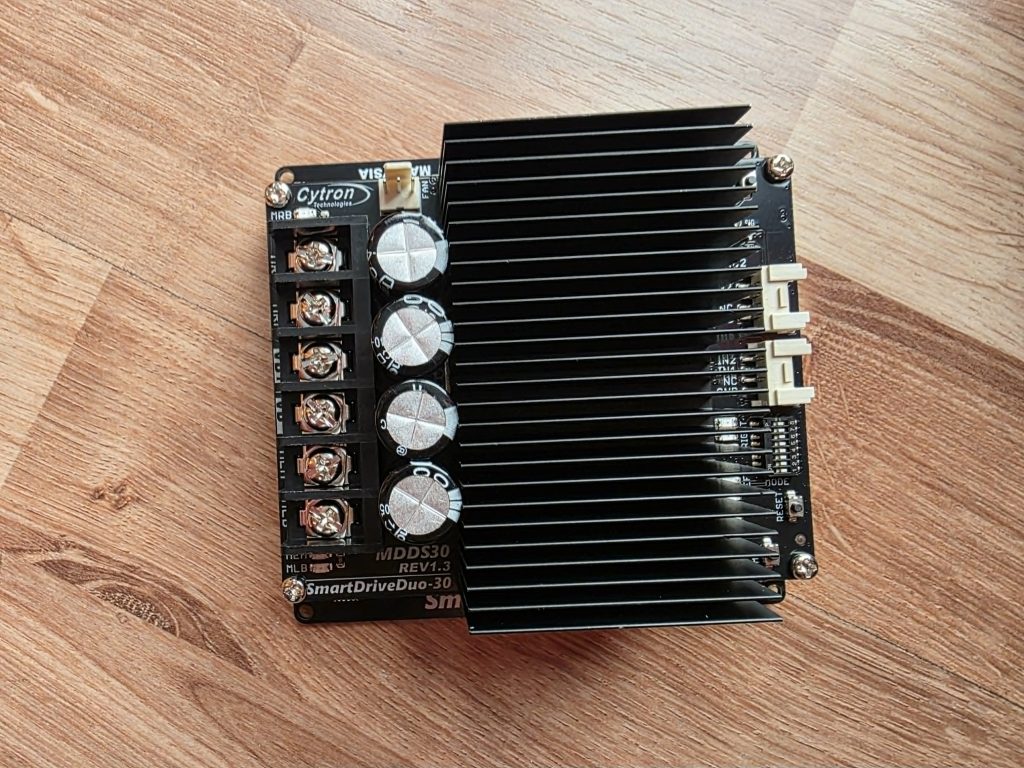

Cytron SmartDriveDuo-30 (MDDS30) – Main drives under strict control
The MDDS30 is a dual-channel workhorse designed for medium and heavy mobile robots. It stands out not only for its raw power but also for its engineering flexibility in control inputs.
Key technical parameters:
- Operating Voltage (VDC): From 7V to 35V DC, which perfectly suits LiFePO4 battery packs in a 24V architecture.
- Current Capacity: 30A continuous current per channel and a massive 80A peak current – an essential margin for sudden starts, stalled wheels, or pushing heavy loads.

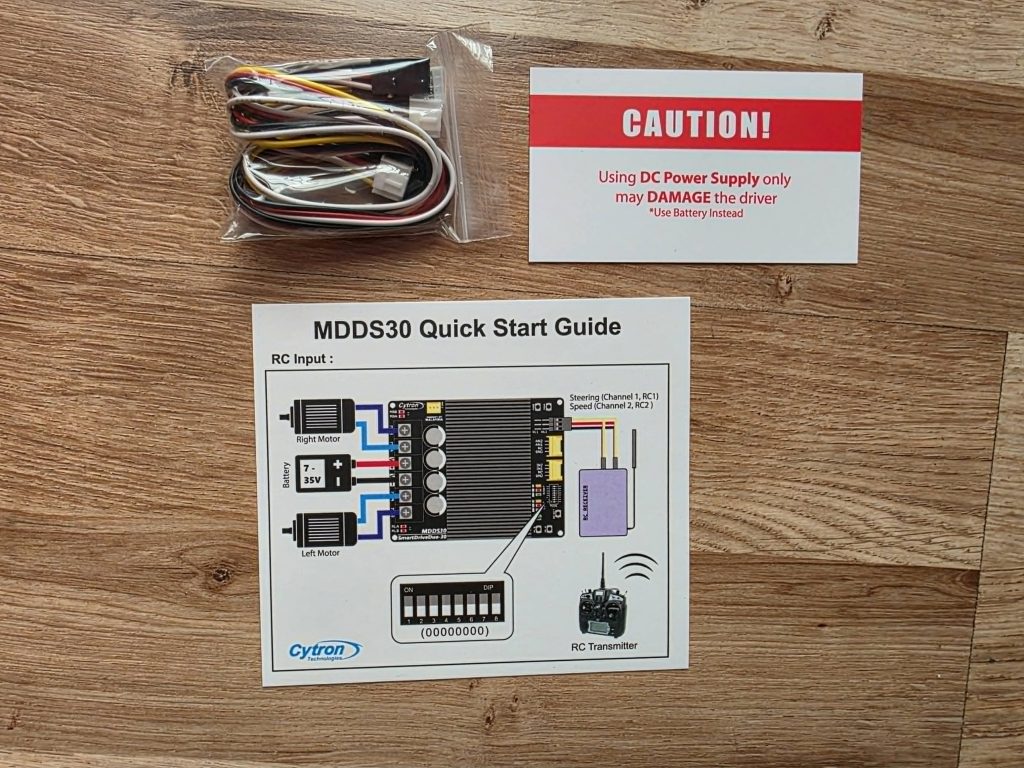

- Integrated Mixed Mode: A hardware channel mixer dedicated to differential drive (skid-steering / tank drive) systems. It allows for fully smooth control of the entire robot chassis from a single transmitter stick, without the need to program complex mixes on the transmitter itself.
- Solid-State MOSFET Architecture: H-bridges based entirely on NMOS transistors guarantee high energy efficiency (18 kHz switching frequency) and drastically reduce heat loss compared to relays or older silicon setups.

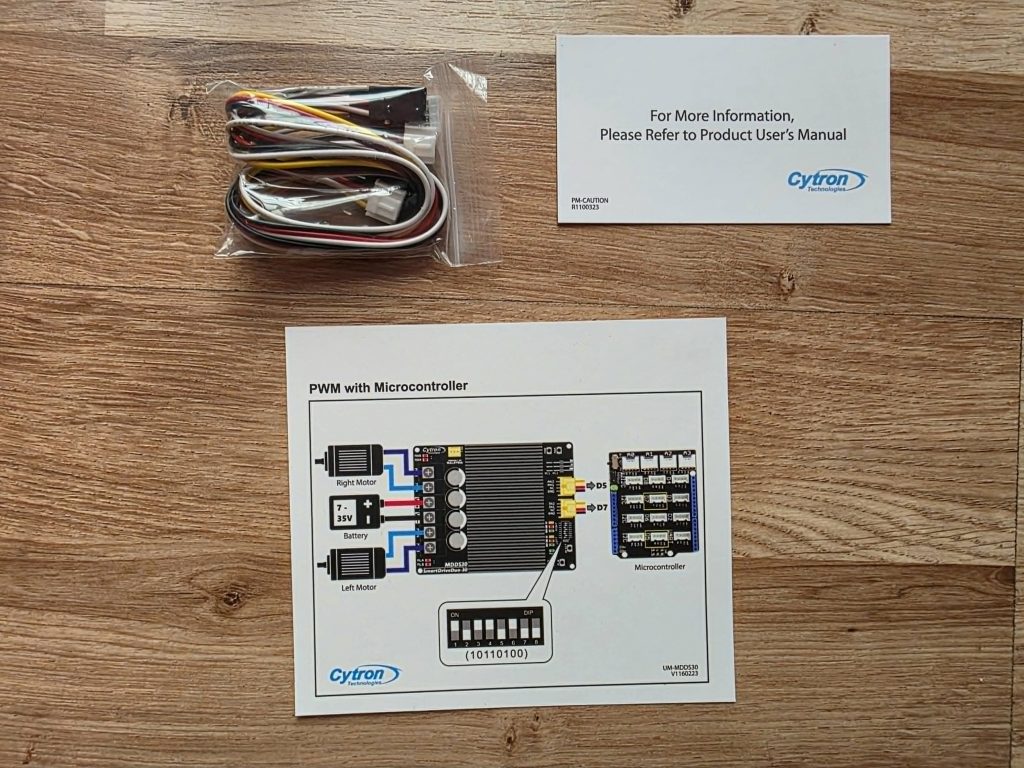

- Broad Input Compatibility: Seamless support for RC signals (PWM), analog control voltages (0-5V), microcontroller signals (PWM/Dir), and serial UART communication.
- Smart Features (Protection): Active overcurrent protection with active current limiting, thermal protection preventing the board from burning out during overloads, and under-voltage lockout to protect the batteries themselves.
👉 Check the full Cytron MDDS30 specification on the official manufacturer’s website

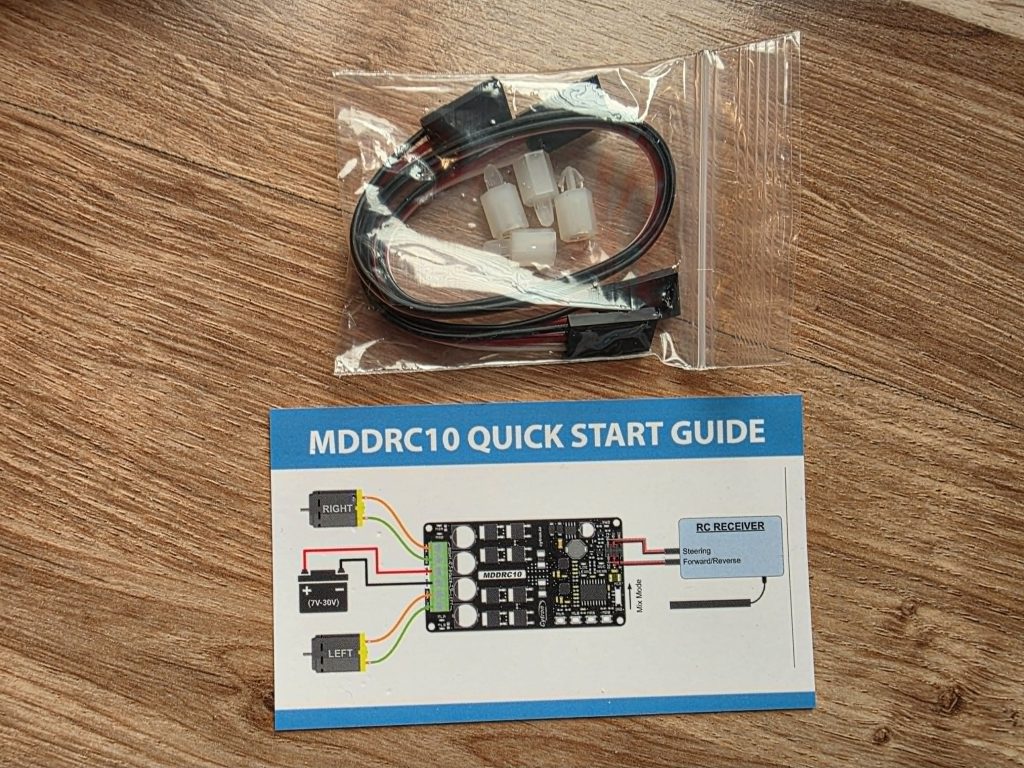

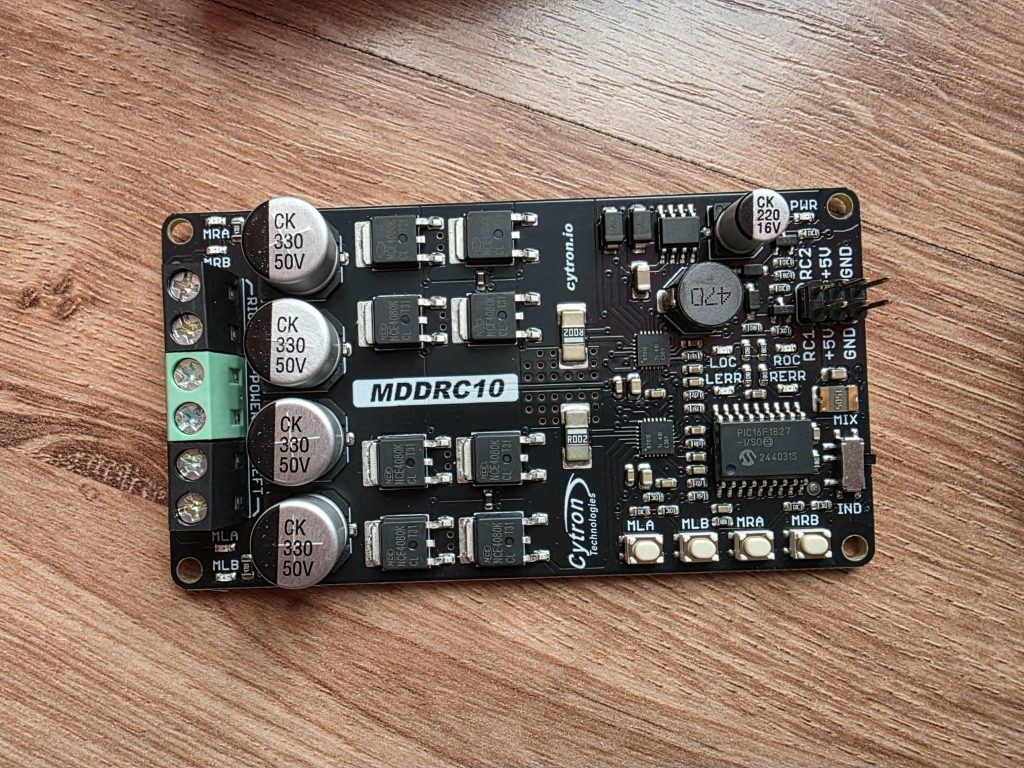

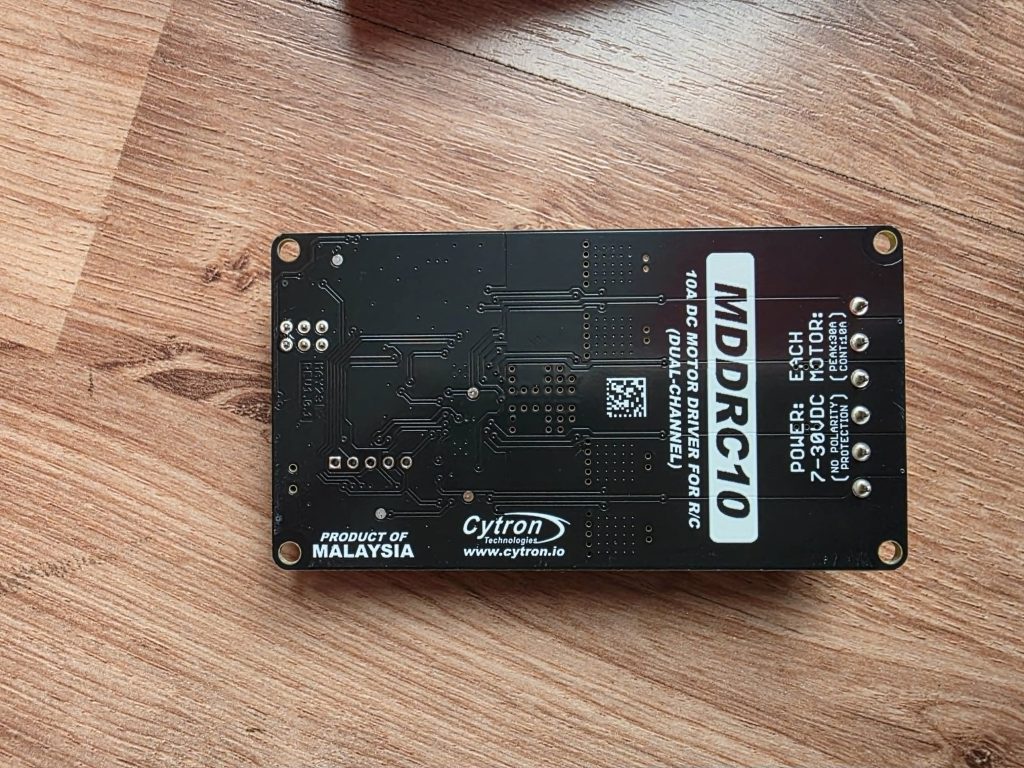

Cytron MDDRC10 – Precise control for attachments and actuators
While the main driver handles the traction, every advanced utility robot features movable attachments – e.g., electric linear actuators for locking mechanisms, lifting loads, or precise angle positioning. The MDDRC10 module steps in perfectly for these tasks, offering a classic Plug & Play solution for RC systems.
Key technical parameters:

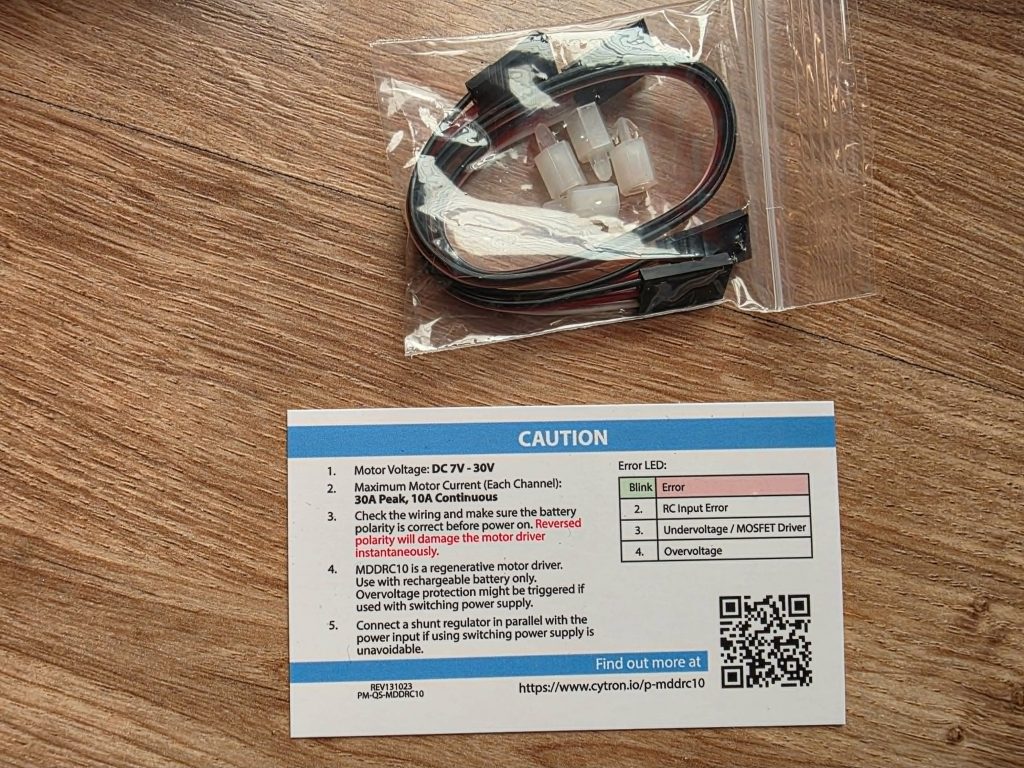

- Operating Voltage (VDC): From 7V to 30V DC.
- Current Capacity: 10A continuous and up to 30A peak (momentary) current per channel, which easily handles mechanically loaded actuators.
- Dedicated RC Interface: Optimized exclusively for RC receivers. The system automatically calibrates the neutral stick position upon power-up (Auto-Calibration), completely eliminating the annoying issue of motor “creeping” at zero deflection.
- Built-in Steering Mixer: Similar to its bigger brother, this module can also handle smaller tracked chassis by mixing the signal from two separate RC receiver channels (e.g., throttle and steering).
- Built-in BEC (Battery Eliminator Circuit): The board can supply 5V directly to the plugged-in RC receiver, drastically reducing the number of extra wires in the control box and eliminating the need for external step-down converters.
- Quiet Motor Operation: An operating frequency of 20 kHz ensures the motors run silently and smoothly.
👉 Check the full Cytron MDDRC10 specification on the official manufacturer’s website
Summary & What’s Next
Switching to professional motor drivers is a game-changer. Combining powerful 30-amp outputs for the drive axles with efficient 10-amp channels for linear actuators creates a scalable, failure-free network inside the control box. Cytron components prove that when building equipment dealing with substantial physical forces, you simply cannot compromise on electronics.
Looking for even more power? If 30A per channel is still not enough for your most extreme builds, stay tuned! A dedicated post covering the even more powerful and highly efficient Cytron MDDS60 driver is already in the works and will be appearing on the blog soon.
And if you are already looking for other proven solutions for your projects – from precise sensors, through power management, to advanced development modules – be sure to check out the official Cytron.io website. You’ll find plenty of great hardware there to make any engineering build much easier!
